Pattern separation of fear extinction memory

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 1.
Figure 1.

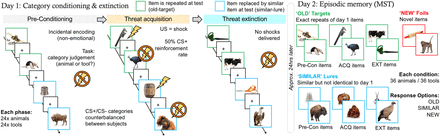

Conditioning and memory paradigm schematic. Participants underwent threat acquisition and extinction on day 1, with items from one category (in this example, CS+ = tools) paired with shock during acquisition, and the other remaining nonreinforced (here, CS = animals). SCRs were acquired through electrodes attached to participants’ left palms, with signal continuously sampled at 200 Hz, preprocessed via Autonomate (Green et al. 2014), and square-root-transformed. Threat expectancy ratings were made on a 3AFC scale (yes, unsure, and no). On day 2, participants underwent a specialized mnemonic similarity test (MST) involving the exact same images seen on day 1 (old targets), similar but nonidentical images from day 1 (similar lures), and novel category images (new foils). 3AFC MST ratings were made for each item (old, similar, and new).

This Article

  1. Learn. Mem. 30: 110-115
