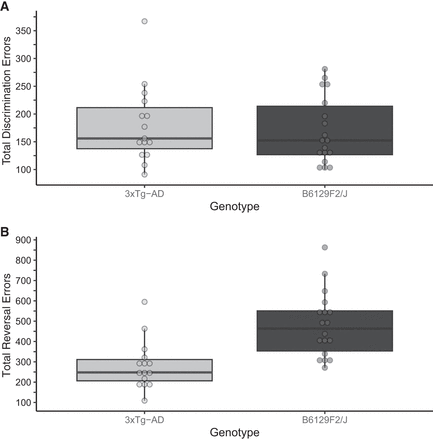

Figure 2.
Number of errors made during odor discrimination learning (A) and reversal learning (B) by 3xTg-AD and B6129F2/J mice. The boxes represent the interquartile range (IQR), the bars in the middle of each box show the medians, the borders of each box show the 25th and 75th percentiles, and the whiskers extend to the furthest points within 1.5 interquartile ranges.
