Depotentiation depends on IP₃ receptor activation sustained by synaptic inputs after LTP induction

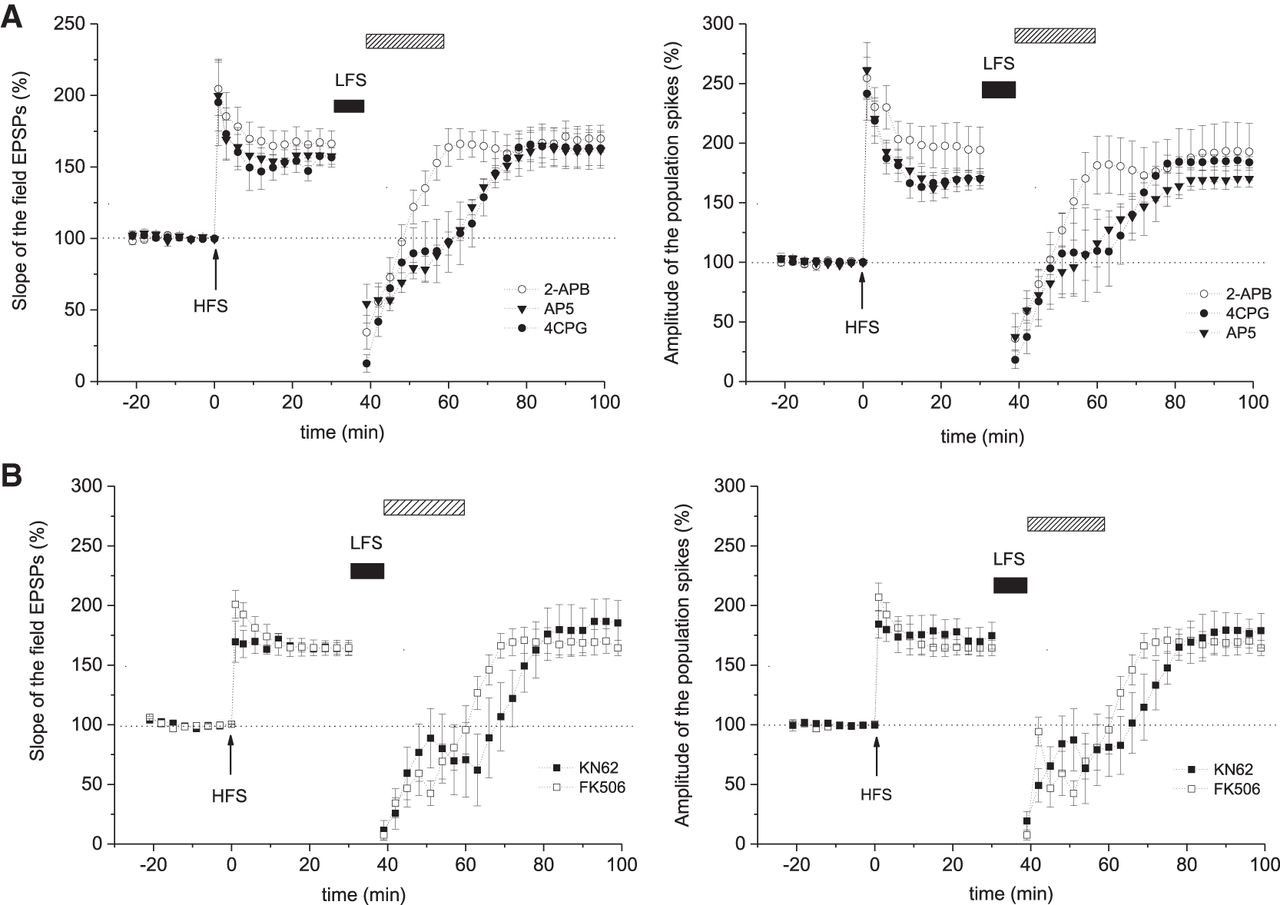

Effects of NMDARs, mGluRs, group I mGluRs, IP₃Rs, CaMKII, or calcineurin activated after LFS on the induction of depotentiation. (A) Summarized results for the time course of depotentiation in the S-EPSP (left panel) or A-PS (right panel) when 50 µM AP5 (n = 5, unfilled circles), 100 µM S-4CPG (n = 5, filled circles), or 2-APB (n = 7, filled triangles) was applied to the perfusate (gray bar) in the presence of test synaptic stimulation during the 20-min period from 0 to 20 min after the end of LFS (black bar). (B) Summarized results for the time course of depotentiation in the S-EPSP (left panel) or A-PS (right panel) when 10 µM KN-62 (n = 6, filled circles) or 1 µM FK506 (n = 6, unfilled circles) was applied to the perfusate (hatched bar) in the presence of test synaptic stimulation during the 20-min period from 0 to 20 min after the end of LFS (black bar).
