Polysomes identified by live imaging of nascent peptides are stalled in hippocampal and cortical neurites

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

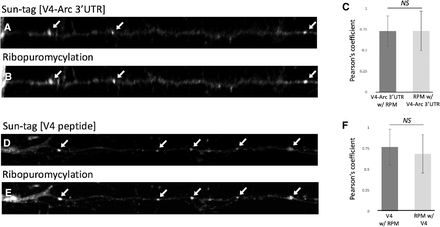

Figure 6.
Figure 6.

SunTag and ribopuromycylation label the same initiation inhibitor resistant polysomes. Shown is the colocalization of V4-Arc 3′UTR (A) and V4 (D) SunTag puncta with RPM signal (B,E) (puncta are indicated by white arrows); quantification of V4-Arc 3′UTR-RPM and RPM-V4-Arc 3′UTR as well as V4-RPM and RPM-V4 colocalization, shown as average Pearson's coefficients, is included as C and F, respectively. Paired, two tailed t-tests found P values of 1 for V4-Arc 3′UTR-RPM and RPM-V4-Arc 3′UTR and 0.1 for V4-RPM and RPM-V4 comparisons. N = 72 RPM and 62 SunTag neurite puncta, taken from a combination of hippocampal and cortical neuron cultures. All errors are shown as standard deviation of the mean.

This Article

  1. Learn. Mem. 26: 351-362
