Polysomes identified by live imaging of nascent peptides are stalled in hippocampal and cortical neurites

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4.
Figure 4.

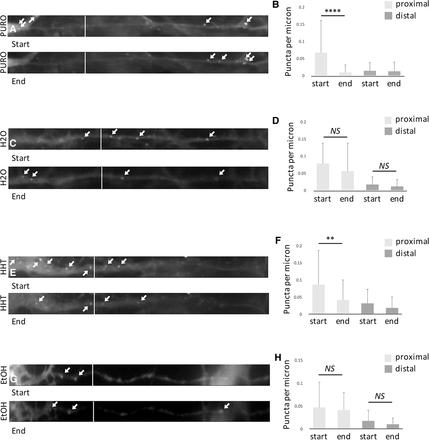

Comparison of distal and proximal dendrites. Border between proximal and distal parts of the neurite indicated by white line. Start (first cycle) and End (tenth cycle) throughout. SunTag puncta are indicated by white arrows. (A) A decrease in the density of proximal, but not distal, SunTag puncta is observed between the start and end of imaging in neuronal cultures treated with puromycin. (B) One-way ANOVA with Tukey's post-hoc multiple comparisons tests: F(3,156) = 11.23, (****) P < 0.0001; NS, P > 0.2, n = 40. (C) No decrease in the density of proximal or distal SunTag puncta is observed between the start and end of imaging in neuronal cultures treated with H20. (D) One-way ANOVA with Tukey's post-hoc multiple comparisons tests, NS, P > 0.2, n = 41. (E) A decrease in the density of proximal, but not distal, SunTag puncta is observed between the start and end of imaging in neuronal cultures treated with HHT. (F) One-way ANOVA for HHT treatment with Tukey's post-hoc multiple comparisons tests: F(3,216) = 11.83, (****) P < 0.0001; (**) P < 0.01; NS, P > 0.2, n = 55. (G) No decrease in the density of proximal or distal SunTag puncta is observed between the start and end of imaging in neuronal cultures treated with ethanol. (G) One-way ANOVA for ethanol treatment with Tukey's post-hoc multiple comparisons tests: NS, P > 0.2, n = 34.

This Article

  1. Learn. Mem. 26: 351-362
